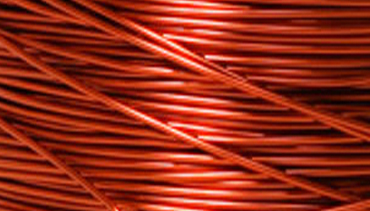

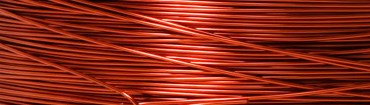

IBERFIL N
PROPERTIES	Excellent mechanical properties
BASE COAT	Polyvinyl acetal modified
OVERCOAT	-
TEMPERATURE INDEX 20.000H	120
APPLICATIONS	Oil transformers, motors and coils with high mechanical requirements.
STANDARDS	EN 60317-12
	-
APPROVALS	-
DIAMETERS  G1	0,10 - 1,40
DIAMETERS  G2	0,10 - 1,40

	IBERFIL SF	IBERFIL SFH
PROPERTIES	Directly solderable. Pale red color.
BASE COAT	Modified polyurethane
OVERCOAT	-	Polyamide
TEMPERATURE INDEX 20.000H	155
APPLICATIONS	Small motors, relays, transformers, solenoids
STANDARDS	EN 60317-20	EN 60317-21
	MW 79 C	MW 80 C
APPROVALS		-
DIAMETERS  G1	0,08 - 4,00
DIAMETERS  G2	0,10 - 4,00

	IBERFIL
	HS	S	SH	H	H	HTV
PROPERTIES	Solderable on high temperature	Directly solderable. Pale red color.		Good temperature resistance		Good temperature resistance and good adherence with heat or Joule effect
BASE COAT	Polyester-imide	Modified polyurethane		Polyester-imide	Polyester or polyester-imide
OVERCOAT	-	-	Polyamide	-	Polyamide	Aromatic or aliphatic polyamide
TEMPERATURE INDEX 20.000H	180
APPLICATIONS	Relays, transformers, motors	Small motors, relays, transformers, solenoids		Motors, ballasts, transformers, solenoids		Speakers, motors, transformers
STANDARDS	EN 60317-23	EN 60317-51	EN 60317-55	EN 60317-8	EN 60317-22	EN 60317-37
	-	NEMA 1000-82C	NEMA 1000-83C	NEMA 1000-30C	NEMA 1000-76C	NEMA 1000-102C
APPROVALS	-	UL-E103536	-	UL-E103536		-
DIAMETERS  G1	0,10 - 1,40	0,08 - 2,00	0,08 - 2,00	0,08 - 6,50	0,08 - 6,50	0,10 - 1,40
DIAMETERS  G2	0,10 - 1,40	0,10 - 2,00	0,10 - 2,00	0,08 - 6,50	0,08 - 6,50	0,10 - 1,40
PROPERTY SHEET	-	PDF	PDF	PDF	PDF	PDF
TECHNICAL DATA	-	PDF	PDF	PDF	PDF	PDF

	IBERFIL
	HC	HCTV	C	HC AF
PROPERTIES	Very high temperature resistance and resistance to chemicals	Good temperature resistance and good adherence with heat or Joule effect	Very high temperature resistance and resistance to chemicals	High frequency resistant
BASE COAT	Polyester or polyester-imide	Polyester or polyester-imide with overcoat of polyamide-imide	Polyamide-imide	Polyester or polyester imide (with or without loat)
OVERCOAT	Polyamide-imide	Aromatic or aliphatic polyamide	-	Polyamide-imide (filled or not)
TEMPERATURE INDEX 20.000H	200
APPLICATIONS	Ballasts, motors, hermetic groups	Deflection coils, motors, transformers	Special motors, pumps, nuclear industry	Manufacture of inverters
STANDARDS	EN 60317-13	EN 60317-38	EN 60317-26	EN 60317-13
	NEMA1000-35C (for hermetic applications NEMA 73C)	-	NEMA 1000-81C (afc 220)	-
APPROVALS	UL-E103536	-	-	-
DIAMETERS  G1	0,08 - 6,50	0,212 - 1,40	0,40 - 1,00	0,45 - 4,00
DIAMETERS  G2	0,08 - 6,50	0,212 - 1,40	0,40 - 1,00	0,45 - 4,00
PROPERTY SHEET	PDF	PDF	PDF	PDF
TECHNICAL DATA	PDF	PDF	PDF	PDF

	IBERFIL C
PROPERTIES	Very high temperature resistance and resistance to chemicals
BASE COAT	Polyamide-imide
OVERCOAT	-
TEMPERATURE INDEX 20.000H	220
APPLICATIONS	Special motors, pumps, nuclear industry
STANDARDS	IEC 60317-57
	NEMA 1000-81C
APPROVALS	-
DIAMETERS  G1	0,40 - 1,00
DIAMETERS  G2	0,40 - 1,00
PROPERTY SHEET	PDF
TECHNICAL DATA	PDF

	IBERFIL PI
PROPERTIES	Very high temperature resistance and resistance to chemicals
BASE COAT	Polyimide
OVERCOAT	-
TEMPERATURE INDEX 20.000H	240
APPLICATIONS	Engines with high temperature conditions
STANDARDS	EN 60317-46
	NEMA 1000-16C
APPROVALS	-
DIAMETERS  G1	0,45 - 1,50
DIAMETERS  G2	0,45 - 1,50
PROPERTY SHEET	PDF
TECHNICAL DATA	PDF

COMPOSITION OF ISOLATIONS COATING	Fibre glass or fibre glass polyester			Enamelled with polyesterimide and lapped with fibre glass or fibre glass-polyester
NUMBER OF LAYERS	1 - 2			1 - 2
IMPREGNATIONS-VARNISH	Epoxy	Polyurethane	Polyester-imide	Epoxy	Polyurethane	Polyester-imide
RESULTANT THERMAL CLASS	F	F	H	F	F	H
TEMPERATURE INDEX 20.000H	155	155	180	155	155	180
APPLICATIONS	Dry transformers, traction motors			Rotating Machines
STANDARDS	EN - 60317-48	EN - 60317-48	EN - 60317-49	EN - 60317-48	EN - 60317-48	EN - 60317-49
	MW 1000 - 41C	MW 1000 - 41C	MW 1000 - 50C (51C)	MW 1000 - 41C	MW 1000 - 41C	MW 1000 - 50C (51C)
WIRES RANGE	1,0 - 6,0 mm			1,0 - 6,0 mm
PROPERTY SHEET	PDF			PDF
TECHNICAL DATA	PDF			PDF

FEATURES	PAPER	POLYESTER + MICA	MICA	KAPTON (R)	NOMEX (R)
THERMAL CLASS	-	F	F	C	C
TYPE OF INSULATION	KRAFT paper strip	Polyester strip + Mica strip	Mica strip	Polyimide strip	ARAMIDE paper strip. Aromatic polyamide 410
TEMPERATURE INDEX 20.000H	90	155	155	240	220
NUMBER OF LAYERS	1 - 6	1 + 1	1 - 2	1 - 2	1 - 6
Tape thickness mm	0,075	0,023 + 0,085	0,085	0,0375	0,05
Overlap %	10 - 50	33 - 50	33 - 50	33 - 50 - 66	33 - 50 - 66
APPLICATIONS	Transformers	Rotating Machines		Traction motors	Motors, alternators, transformers
STANDARDS	-	-	-	EN 60317-43	EN 60317-52
WIRES RANGE	-	-	-	-	-

	IBERFIL H
PROPERTIES	Good temperature resistance
BASE COAT	Polyester-imide
OVERCOAT	-
TEMPERATURE INDEX	180
APPLICATIONS	Rotating machines, transformers
STANDARDS	EN 60317-28
	-
APPROVALS	UL-E103536
RECTANGULAR RANGE G1	≤ 100 mm²
RECTANGULAR RANGE G2	≤ 100 mm²
PROPERTY SHEET	PDF
TECHNICAL DATA	PDF

	IBERFIL HC
PROPERTIES	Good temperature resistance
BASE COAT	Polyester or polyester-imide
OVERCOAT	Polyamide-imide
TEMPERATURE INDEX	200
APPLICATIONS	Rotating machines, transformers
STANDARDS	EN 60317-29
	MW-36
APPROVALS	UL-E103536
RECTANGULAR RANGE G1	≤ 100 mm²
RECTANGULAR RANGE G2	≤ 100 mm²
PROPERTY SHEET	PDF
TECHNICAL DATA	PDF

COMPOSITION OF ISOLATIONS COATING	Fibre glass or fibre glass polyester			Enamelled with polyesterimide and lapped grade 2 with fibre glass or fibre glass-polyester
NUMBER OF LAYERS	1 - 2			1 - 2
IMPREGNATIONS-VARNISH	Epoxy	Polyurethane	Polyester-imide	Epoxy	Polyurethane	Polyester-imide
RESULTANT THERMAL CLASS	F	F	H	F	F	H
TEMPERATURE INDEX 20.000H	155	155	180	155	155	180
APPLICATIONS	Dry transformers, traction motors			Rotating Machines
STANDARDS	EN - 60317-60	EN - 60317-60	EN - 60317-61	EN - 60317-60	EN - 60317-60	EN - 60317-61
	MW 1000 - 42C	MW 1000 - 42C	MW 1000 - 52C (53C)	MW 1000 - 42C	MW 1000 - 42C	MW 1000 - 52C (53C)
RECTANGULAR RANGE	≤ 100 mm²			≤ 100 mm²
PROPERTY SHEET	PDF			PDF
TECHNICAL DATA	PDF			PDF

FEATURES	PAPER	POLYESTER + MICA	MICA	KAPTON (R)	NOMEX (R)
THERMAL CLASS	-	F	F	C	C
TYPE OF INSULATION	KRAFT paper strip	Polyester strip + Mica strip	Mica strip	Polyimide strip	ARAMIDE paper strip. Aromatic polyamide 410
TEMPERATURE INDEX 20.000H	90	155	155	240	220
NUMBER OF LAYERS	1 - 6	1 + 1	1 - 2	1 - 2	1 - 6
Tape thickness mm	0,075	0,023 + 0,085	0,085	0,0375	0,05
Overlap %	10 - 50	33 - 50	33 - 50	33 - 50 - 66	33 - 50 - 66
APPLICATIONS	Transformers	Rotating Machines		Traction motors	Motors, alternators, transformers
STANDARDS	EN 60317-27	-	-	EN 60317-44	EN 60317-53
RECTANGULAR RANGE	10 - 60 mm²	6 - 60 mm²	6 - 60 mm²	6 - 40 mm²	6 - 60 mm²

Normalmente el bobinado de la armadura de los generadores de gran tamaño consiste de múltiples conductores aislados separadamente y transpuestos entre sí (usando la transposición Roebel) a fin de suprimir las pérdidas causadas por las corrientes de Eddy y las corrientes circulantes o de Foucault.

A partir de cualquier tipo de pletina de nuestra gama de fabricación, Acebsa confecciona para sus clientes barras verdes con transposición, gratado, chips, separadores verticales,... Para la manufactura de barras Roebel.

Acebsa dispone de maquinaria que nos permite la conformación de bobinas realizadas con pletinas encintadas (“loop manufacturing machine”) usadas en la fabricación de máquinas eléctricas de alto voltaje, maquinas de tracción, etc.

El departamento de vigilancia tecnológica de Acebsa ha permitido prepararnos a las evoluciones de los mercados y a la diversificación de los pedidos tanto a nivel de pletina esmaltada, como de pletina esmaltada y cubierta, pletina encintada y pletina desnuda.

A base de estas informaciones, Acebsa refuerza su línea de laminación con dos nuevas líneas más para preparar la pletina a dimensión (conformación y tratamiento térmico).

Esta inversión nos ha abierto, entre otras cosas, el mercado de las barras cortadas para las aplicaciones que necesitan un encintado posterior a su manipulación.

	IBERFIL
	HC	HCTV	C	HC AF
PROPERTIES	Very high temperature resistance and resistance to chemicals	Good temperature resistance and good adherence with heat or Joule effect	Very high temperature resistance and resistance to chemicals	High frequency resistant
BASE COAT	Polyester or polyester-imide	Polyester or polyester-imide with overcoat of polyamide-imide	Polyamide-imide	Polyester or polyester imide (with or without loat)
OVERCOAT	Polyamide-imide	Aromatic or aliphatic polyamide	-	Polyamide-imide (filled or not)
TEMPERATURE INDEX 20.000H	200
APPLICATIONS	Ballasts, motors, hermetic groups	Deflection coils, motors, transformers	Special motors, pumps, nuclear industry	Manufacture of inverters
STANDARDS	EN 60317-13	EN 60317-38	EN 60317-26	EN 60317-13
	NEMA1000-35C (for hermetic applications NEMA 73C)	-	NEMA 1000-81C (afc 220)	-
APPROVALS	UL-E103536	-	-	-
DIAMETERS  G1	0,08 - 6,50	0,212 - 1,40	0,40 - 1,00	0,45 - 4,00
DIAMETERS  G2	0,08 - 6,50	0,212 - 1,40	0,40 - 1,00	0,45 - 4,00
PROPERTY SHEET	PDF	PDF	PDF	PDF
TECHNICAL DATA	PDF	PDF	PDF	PDF

COMPOSITION OF ISOLATIONS COATING	Fibre glass or fibre glass polyester			Enamelled with polyesterimide and lapped with fibre glass or fibre glass-polyester
NUMBER OF LAYERS	1 - 2			1 - 2
IMPREGNATIONS-VARNISH	Epoxy	Polyurethane	Polyester-imide	Epoxy	Polyurethane	Polyester-imide
RESULTANT THERMAL CLASS	F	F	H	F	F	H
TEMPERATURE INDEX 20.000H	155	155	180	155	155	180
APPLICATIONS	Dry transformers, traction motors			Rotating Machines
STANDARDS	EN - 60317-48	EN - 60317-48	EN - 60317-49	EN - 60317-48	EN - 60317-48	EN - 60317-49
	MW 1000 - 41C	MW 1000 - 41C	MW 1000 - 50C (51C)	MW 1000 - 41C	MW 1000 - 41C	MW 1000 - 50C (51C)
WIRES RANGE	1,0 - 6,0 mm			1,0 - 6,0 mm
PROPERTY SHEET	PDF			PDF
TECHNICAL DATA	PDF			PDF

FEATURES	PAPER	POLYESTER + MICA	MICA	KAPTON (R)	NOMEX (R)
THERMAL CLASS	-	F	F	C	C
TYPE OF INSULATION	KRAFT paper strip	Polyester strip + Mica strip	Mica strip	Polyimide strip	ARAMIDE paper strip. Aromatic polyamide 410
TEMPERATURE INDEX 20.000H	90	155	155	240	220
NUMBER OF LAYERS	1 - 6	1 + 1	1 - 2	1 - 2	1 - 6
Tape thickness mm	0,075	0,023 + 0,085	0,085	0,0375	0,05
Overlap %	10 - 50	33 - 50	33 - 50	33 - 50 - 66	33 - 50 - 66
APPLICATIONS	Transformers	Rotating Machines		Traction motors	Motors, alternators, transformers
STANDARDS	-	-	-	EN 60317-43	EN 60317-52
WIRES RANGE	-	-	-	-	-

	IBERFIL H
PROPERTIES	Good temperature resistance
BASE COAT	Polyester-imide
OVERCOAT	-
TEMPERATURE INDEX	180
APPLICATIONS	Rotating machines, transformers
STANDARDS	EN 60317-28
	-
APPROVALS	UL-E103536
RECTANGULAR RANGE G1	≤ 100 mm²
RECTANGULAR RANGE G2	≤ 100 mm²
PROPERTY SHEET	PDF
TECHNICAL DATA	PDF

	IBERFIL HC
PROPERTIES	Good temperature resistance
BASE COAT	Polyester or polyester-imide
OVERCOAT	Polyamide-imide
TEMPERATURE INDEX	200
APPLICATIONS	Rotating machines, transformers
STANDARDS	EN 60317-29
	MW-36
APPROVALS	UL-E103536
RECTANGULAR RANGE G1	≤ 100 mm²
RECTANGULAR RANGE G2	≤ 100 mm²
PROPERTY SHEET	PDF
TECHNICAL DATA	PDF

COMPOSITION OF ISOLATIONS COATING	Fibre glass or fibre glass polyester			Enamelled with polyesterimide and lapped grade 2 with fibre glass or fibre glass-polyester
NUMBER OF LAYERS	1 - 2			1 - 2
IMPREGNATIONS-VARNISH	Epoxy	Polyurethane	Polyester-imide	Epoxy	Polyurethane	Polyester-imide
RESULTANT THERMAL CLASS	F	F	H	F	F	H
TEMPERATURE INDEX 20.000H	155	155	180	155	155	180
APPLICATIONS	Dry transformers, traction motors			Rotating Machines
STANDARDS	EN - 60317-60	EN - 60317-60	EN - 60317-61	EN - 60317-60	EN - 60317-60	EN - 60317-61
	MW 1000 - 42C	MW 1000 - 42C	MW 1000 - 52C (53C)	MW 1000 - 42C	MW 1000 - 42C	MW 1000 - 52C (53C)
RECTANGULAR RANGE	≤ 100 mm²			≤ 100 mm²
PROPERTY SHEET	PDF			PDF
TECHNICAL DATA	PDF			PDF

FEATURES	PAPER	POLYESTER + MICA	MICA	KAPTON (R)	NOMEX (R)
THERMAL CLASS	-	F	F	C	C
TYPE OF INSULATION	KRAFT paper strip	Polyester strip + Mica strip	Mica strip	Polyimide strip	ARAMIDE paper strip. Aromatic polyamide 410
TEMPERATURE INDEX 20.000H	90	155	155	240	220
NUMBER OF LAYERS	1 - 6	1 + 1	1 - 2	1 - 2	1 - 6
Tape thickness mm	0,075	0,023 + 0,085	0,085	0,0375	0,05
Overlap %	10 - 50	33 - 50	33 - 50	33 - 50 - 66	33 - 50 - 66
APPLICATIONS	Transformers	Rotating Machines		Traction motors	Motors, alternators, transformers
STANDARDS	EN 60317-27	-	-	EN 60317-44	EN 60317-53
RECTANGULAR RANGE	10 - 60 mm²	6 - 60 mm²	6 - 60 mm²	6 - 40 mm²	6 - 60 mm²

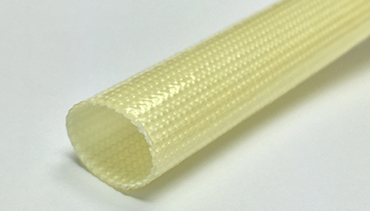

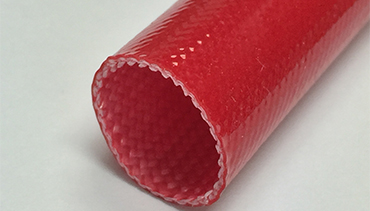

SLEEVINGS FOR THERMAL,ELECTRICAL AND MECHANICAL APPLICATIONS
DESCRIPTION	Braided fiberglass sleeving coated with impregnation and special silicone rubber
MAIN FEATURES	Highly flexible Indicated for appliances operating at high temperatures.Excelent dielectric strength Very good chemical resistance to oils.
THERMAL CLASS	H-220ºC
THERMAL PROPERTIES	Ageing Resistance Flammability 7 days at 265ºC.No cracking or detachment of coating.Color is clearly recognizable Passes Horizontal flame test according UL 1441
DIELECTRIC STRENGTH	Test Value IEC 60684-2 > 3,5Kv UL 1441 > 3,5Kv
CHEMICAL PROPERTIES	Chemical resistance Good resistance to ASTM oil nº 2.Good compatibility with most iimpregnation varnishes and resins.
OPERATING TEMPERATURE	-40ºC to +235ºC in continuous. Peaks at 300ºC.
STANDARDS	IEC 60684-3. Sheet 400-402 UL 1441
DIMENSIONS	0,5mm to 22 mm. Inner bore (mm) Standard packaging (m) 0,5 100 0,8 100 1 100 1,5 100 2 100 2,5 100 3 100 3,5 100 4 100 4,5 100 5 100 6 100 7 100 8 50 9 50 10 50 11 50 12 50 14 50 15 50 16 50 18 50 20 25 22 25
COLORS	Natural is standard color.Other colors on request.

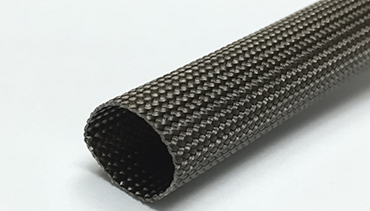

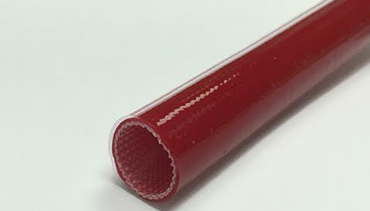

SLEEVINGS FOR THERMAL,ELECTRICAL AND MECHANICAL APPLICATIONS
DESCRIPTION	Braided fiberglass sleeving coated with impregnation and special silicone rubber.
MAIN FEATURES	Highly flexible Indicated for appliances operating at high temperatures.Excelent dielectric strength Very good chemical resistance to oils.
THERMAL CLASS	H-220ºC
THERMAL PROPERTIES	Ageing Resistance Flammability 7 days at 265ºC.No cracking or detachment of coating.Color is clearly recognizable. Passes Horizontal flame test according UL 1441
DIELECTRIC STRENGTH	Test Value IEC 60684-2 > 4Kv UL 1441 > 4Kv
CHEMICAL PROPERTIES	Chemical Propierties Good resistance to ASTM oil nº 2.Good compatibility with most iimpregnation varnishes and resins.
OPERATING TEMPERATURE	-40ºC to +235ºC in continuous. Peaks at 300ºC
STANDARDS	IEC 60684-3. Sheet 400-402 UL 1441
DIMENSIONS	0,5mm to 22 mm Inner bore (mm) Standard packaging (m) 0,5 100 0,8 100 1 100 1,5 100 2 100 2,5 100 3 100 3,5 100 4 100 4,5 100 5 100 6 100 7 100 8 50 9 50 10 50 11 50 12 50 14 50 15 50 16 50 18 50 20 25 22 50
COLORS	Natural is standard color.Other colors on request

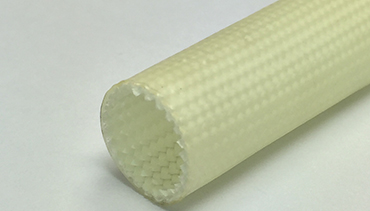

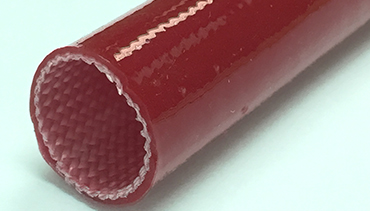

SLEEVINGS FOR THERMAL,ELECTRICAL AND MECHANICAL APPLICATIONS
DESCRIPTION	Braided fiberglass sleeving coated with impregnation and special silicone rubber
MAIN FEATURES	Highly flexible Indicated for appliances operating at high temperatures.Excelent dielectric strength. Very good chemical resistance to oils.
THERMAL CLASS	H-220ºC
THERMAL PROPERTIES	Ageing Resistance Flammability 7 days at 265ºC.No cracking or detachment of coating.Color is clearly recognizable Passes Horizontal flame test according UL 1441
DIELECTRIC STRENGTH	Test Value IEC 60684-2 > 7,5Kv UL 1441 > 7,5Kv
CHEMICAL PROPERTIES	Chemical resistance Good resistance to ASTM oil nº 2.Good compatibility with most iimpregnation varnishes and resins.
OPERATING TEMPERATURE	-40ºC to +235ºC in continuous. Peaks at 300ºC.
STANDARDS	IEC 60684-3. Sheet 400-402 UL 1441. File: E-233574
DIMENSIONS	0,5mm to 22 mm. Inner bore (mm) Standard packaging (m) 0,5 100 0,8 100 1 100 1,5 100 2 100 2,5 100 3 100 3,5 100 4 100 4,5 100 5 100 6 100 7 100 8 50 9 50 10 50 11 50 12 50 14 50 15 50 16 50 18 50 20 25 22 50
COLORS	Natural is standard color.Other colors on request.

SLEEVINGS FOR THERMAL,ELECTRICAL AND MECHANICAL APPLICATIONS
DESCRIPTION	Braided fiberglass sleeving , coated with urethane-acrylic resin.
MAIN FEATURES	Solvent free sleeving. Halogen free Excellent compatibility with Class F impregnating varnishes.
THERMAL CLASS	F-155ºC
THERMAL PROPERTIES	Ageing Resistance Flammability Mantains its flexibility at +175ºC.Withstands its properties 60 days at 190ºC. Passes Horizontal flame test according UL 1441
DIELECTRIC STRENGTH	Test Value IEC 60684 > 5Kv UL 1441 > 5Kv
CHEMICAL PROPERTIES	Chemical resistance Withstands aromatic solvents.Good resistance to ASTM oil nº 2.Good compatibility with Class F insulating varnishes
OPERATING TEMPERATURE	-40ºC to +155ºC in continuous. Peaks at 225ºC.
STANDARDS	IEC 60684-3. Sheet 409 UL 1441. File: E-233574
DIMENSIONS	0,5mm to 10 mm. Inner bore (mm) Standard packaging (m) 0,5 200 1 200 1,5 200 2 200 2,5 200 3 100 4 100 5 100 8 100 10 100
COLORS	Natural is standard color.Other colors on request.

SLEEVINGS FOR THERMAL,ELECTRICAL AND MECHANICAL APPLICATIONS
DESCRIPTION	Braided fiberglass sleeving, impregnated with special silicone resin
MAIN FEATURES	Usefull for a very high operating temperature devices Self-extinguishing. Incombustible. Good frying resistance
THERMAL CLASS	C-600ºC
THERMAL PROPERTIES	Heat Resistance Flammability No cracks after bending 48h at 600ºC Does not ignite
DIELECTRIC STRENGTH	Test Value IEC 60684 > 0,8Kv UL 1441 > 0,8Kv
CHEMICAL PROPERTIES	Chemical resistance Excelent resistance to solvents.Compatible with most insulating varnishes.
OPERATING TEMPERATURE	-40ºC to +600ºC in continuous.
STANDARDS	IEC 60684-3. UL 1441
DIMENSIONS	0,5mm to 18 mm. Inner bore (mm) Standard packaging (m) 0,5 200 1 200 1,5 200 3 100 3,5 100 4 100 4,5 100 5 100 6 100 7 100 8 100 10 50 12 50 14 50 16 50 18 50
COLORS	Grey is standard color.

SLEEVINGS FOR THERMAL,ELECTRICAL AND MECHANICAL APPLICATIONS

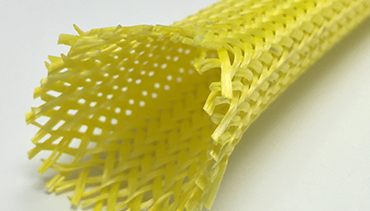

DESCRIPTION	Not standard braided fiberglass sleeving , impregnated with special Polyurethane varnish
MAIN FEATURES	The sleeving expands to the double of its nominal diameter, and adapting itself to the shape of the object to be jacketed. Very good adhesion between coat and fiberglass.Suitable for protection of electrical connections. Excellent compatibility with Class F impregnating varnishes.
THERMAL CLASS	F-155ºC
THERMAL PROPERTIES	Ageing Resistance Flammability Mantains its flexibility at +175ºC. Passes Horizontal flame test according UL 1441
DIELECTRIC STRENGTH	Test Value IEC 60684 > 1Kv UL 1441 > 1Kv
CHEMICAL PROPERTIES	Chemical resistance Good resistance to ASTM oil nº 2.Good compatibility with most Class F insulating varnishes
OPERATING TEMPERATURE	-40ºC to +155ºC in continuous. Peaks at 175ºC.
STANDARDS	IEC 60684-3. Sheet 409
DIMENSIONS	6 mm to 16 mm. Inner bore (mm) Standard packaging (m)Plastic spools 6 500 8 500 10 250 12 250 16 250
COLORS	Yellow is standard color.

SLEEVINGS FOR THERMAL,ELECTRICAL AND MECHANICAL APPLICATIONS

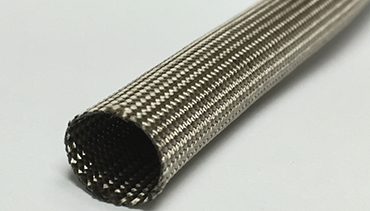

DESCRIPTION	Heat treated braided fiberglass sleeving
MAIN FEATURES	Usefull for a very high operating temperatures devices like heaters. Self-extinguishing. Incombustible Halogen free
THERMAL CLASS	C-450ºC
THERMAL PROPERTIES	Heat Resistance Flammability No cracks after bending 48h at 500ºC After IEC60684-2 Flame test, Does not ignite
DIELECTRIC STRENGTH	Test Value IEC 60684 > 0,9Kv UL 1441 > 0,9Kv
CHEMICAL PROPERTIES	Chemical resistance Excelent resistance to solvents.Compatible with most insulating varnishes.
OPERATING TEMPERATURE	-40ºC to +450ºC in continuous. Peaks at 550ºC.
STANDARDS	IEC 60684. Sheets 300 UL 1441.
DIMENSIONS	0,5mm to 18 mm. Inner bore (mm) SUMINISTRO E STANDAR (m) Carton spools 0,5 200 1,5 200 2 200 3 100 4 100 5 100 6 100 7 100 9 100 10 50 12 50 14 50 16 50 18 25
COLORS	Grey is standard color.

TUBOS AISLANTES PARA PROTECCIÓN TÉRMICA, ELÉCTRICA Y MECÁNICA

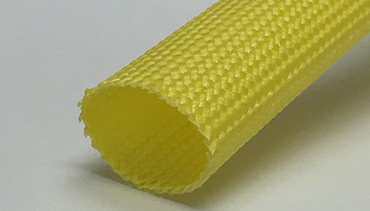

DESCRIPTION	Tubo trenzado de fibra de vidrio con impregación Flex y recubierto con barniz de Poliuretano especial
THERMAL CLASS	F-155º
THERMAL PROPERTIES	Resistencia al envejecimiento Flammability Mantiene su flexibilidad a 175ºC. Pasa test de llama horizontal según UL 1441
DIELECTRIC STRENGTH	Test Value IEC 60684 > 1Kv UL 1441 > 1Kv
CHEMICAL PROPERTIES	Resistencia a productos Químicos Excelente Resistencia a los disolventes.Compatible con la mayoría de barnices de impregnación.
OPERATING TEMPERATURE	-40ºC to +155ºC en continuo. Picos a 175ºC.
STANDARDS	IEC 60684-3. UL 1441
DIMENSIONS	0,5mm to 18 mm. Inner bore (mm) Standard packaging (m) 0,5 200 1 200 1,5 200 2 200 2,5 200 3 100 4 100 5 100 8 100 10 50
COLORS	Yellow

SLEEVINGS FOR THERMAL,ELECTRICAL AND MECHANICAL APPLICATIONS

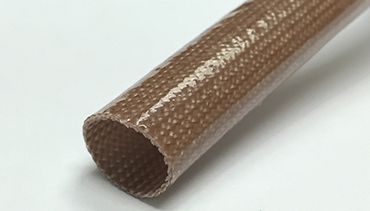

DESCRIPTION	Braided fiberglass sleeving coated with Flex impregnation and special Polyurethane varnish
MAIN FEATURES	Highly flexible Very good adhesion between coat and fiberglass.Suitable for protection of electrical connections. Excellent compatibility with Class F impregnating varnishes.
THERMAL CLASS	F-155ºC
THERMAL PROPERTIES	Ageing Resistance Flammability Mantains its flexibility at +175ºC. Passes Horizontal flame test according UL 1441
DIELECTRIC STRENGTH	Test Value IEC 60684 > 3Kv UL 1441 > 3Kv
CHEMICAL PROPERTIES	Chemical resistance Good resistance to ASTM oil nº 2.Good compatibility with most Class F insulating varnishes
OPERATING TEMPERATURE	-40ºC to +155ºC in continuous. Peaks at 175ºC.
STANDARDS	IEC 60684-3. Sheet 409 UL 1441. File: E-327791
DIMENSIONS	0,5mm to 22 mm. Inner bore (mm) Standard packaging (m) 0,5 200 0,8 200 1 200 1,5 200 2 200 2,5 200 3 100 3,5 100 4 100 4,5 100 5 100 6 100 7 100 8 100 9 100 10 100 11 100 12 100 14 50 15 50 16 50 18 25 20 25 22 25
COLORS	Brown is standard color..

SLEEVINGS FOR THERMAL,ELECTRICAL AND MECHANICAL APPLICATIONS
DESCRIPTION	Braided fiberglass sleeving coated with Flex impregnation and special Polyurethane varnish
MAIN FEATURES	Highly flexible Very good adhesion between coat and fiberglass.Suitable for protection of electrical connections. Excellent compatibility with Class F impregnating varnishes.
THERMAL CLASS	F-155ºC
THERMAL PROPERTIES	Ageing Resistance Flammability Mantains its flexibility at +175ºC. Passes Horizontal flame test according UL 1441
DIELECTRIC STRENGTH	Test Value IEC 60684 > 4Kv UL 1441 > 4Kv
CHEMICAL PROPERTIES	Chemical resistance Good resistance to ASTM oil nº 2.Good compatibility with most Class F insulating varnishes
OPERATING TEMPERATURE	-40ºC to +155ºC in continuous. Peaks at 175ºC.
STANDARDS	IEC 60684-3.Sheet 409 UL 1441.File: E-327791
DIMENSIONS	0,5mm to 22 mm. Inner bore (mm) Standard packaging (m) 0,5 200 0,8 200 1 200 1,5 200 2 200 2,5 200 3 100 3,5 100 4 100 4,5 100 5 100 6 100 7 100 8 100 9 100 10 100 11 100 12 100 14 50 15 50 16 50 18 25 20 25 22 25
COLORS	Natural is standard color.Other colors on request.
